Summary
Features:
great portability body, easily packed in your pocket.
Optical and 2 4G wireless transmission to offer stable output.
When using Godox 2.4G wireless X system.
Use Godox 2.4G wireless X system lo achieve TTL;
Control or use Godox TTL wireless flash trigger X1 to wirelessly control TTL functions,
wirelessly adjust flash's power levels.
AD200 has 2CX)Ws, GN 60 (m ISO 100, with AD-S2 standard reflector,
@28mm)and GN 52 (m ISO 100, @35mm) Stable color
temperature at 5600±200K over the entire power range.
Professional lithium battery pack has large capacity (14.4V/2900mAh)
to provide 500 full power flashes and recycle in 0.01-2.1 second.
8 steps of power adjustment (1/1 to 1/128) offer better lights effects Fully
support flash exposure compensation.1/8000S high speed sync,
first-curtain sync, second-curtain sync, modeling lamp,
manual flash, multi flash. C Fn custom functions, etc.
AD200 adopts Godox mount with a senes of accessories e g. barn doors, color filters and diffuser, etc.
Specifications:
Model: AD200
Wireless slave mode: radio transmission mode (compatible with Nikon Sony Canon)
Flash mode: Wireless off (slave unit of radio transmission) - M / Multi (TTL / M / Multi)
Compatible cameras under radio transmission (as slave unit):
Nikon (X1N as master unit), Sony (X1S as master unit), Canon (X1C as master unit)
Guide number (1/1 output): Flash light Flash head 52 (m ISO 100, @ 35mm),
incandescent lamp Flash head 60 (m ISO 100, with AD-S2 standard reflector, @ 28mm)
Flash duration t0.1 (approx.):
Flash light Flash head / light bulb Flash head (1/220 to 1/13000 seconds)
Power: 220W
Power output: 8 levels (1/128 ~ 1/1)
Stroboscopic Flash: Offer (up to 90 times, 99Hz)
Flash exposure correction (FEC): manual. FEB: + - 3 stops in 1-3 steps.
Synchronization mode:
high-speed synchronization (up to 1 / 8000s),
synchronization of the first curtain, synchronization of the second curtain.
Delay flash: 0.01-30 seconds.
Mask / Beep / Modeling Lamp (LED) / Flashing Light: Yes
Optical slave flash: S1 / S2
Wireless flash (2.4G transmission)
Wireless Flash Function: Slave, Off
Controllable slave groups: 5 (A / B / C / D / E)
Transmission range (approx.): 100m
Channels: 32
Power supply:
Power supply: Lithium battery (14.4V / 2900mAh)
The full power flashes: 500
Recycling time: Approx. 0.01-2.1s
Battery indication: YES
Power indicator: After about 30 minutes idle mode, automatic power supply.
Sync Shutter mode: 3.5mm sync line, wireless control port.
Color temperature: 5600 + -200K

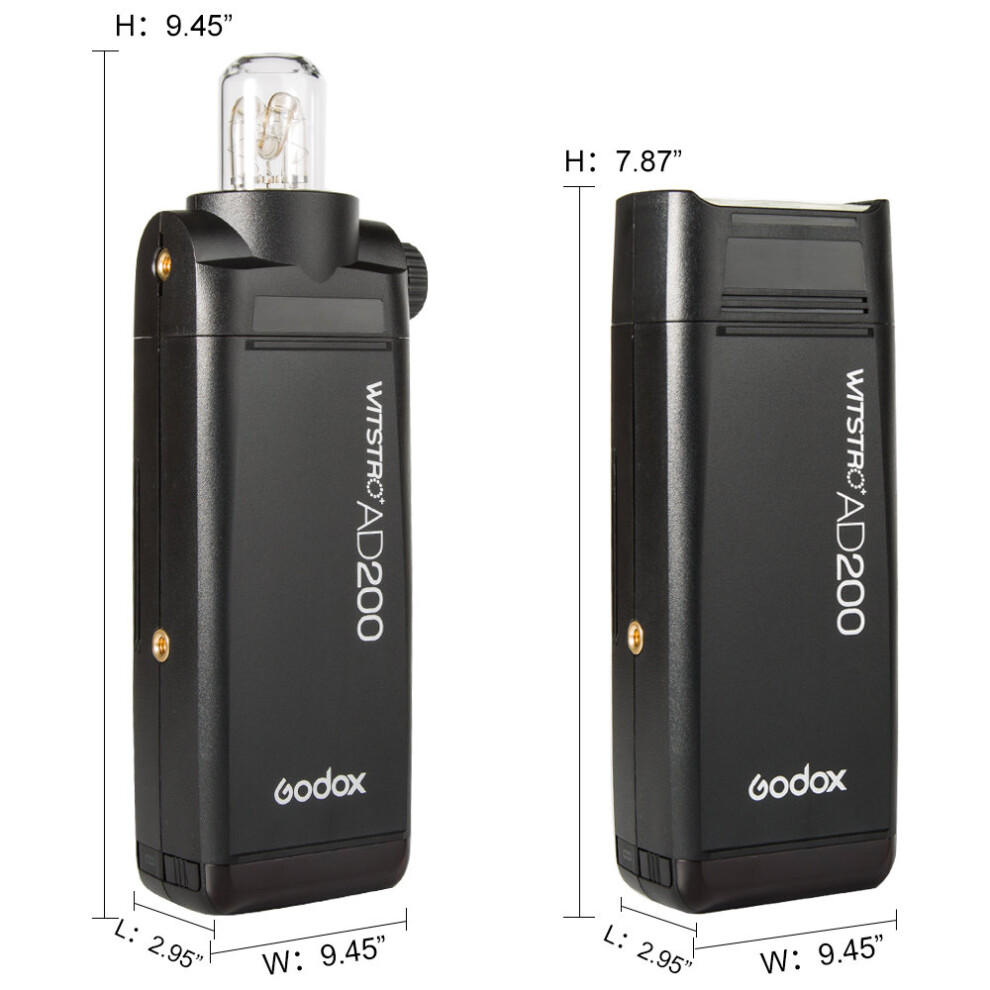

Dimension: 168 * 75 * 500mm (Flash Head not included)
Net weight: 560g (flash head and battery not included)
XPro-N TTL Wireless Flash Trigger can not only control the flashes with built-in Godox wireless X system, e g camera flashes, outdoor flashes and studio flashes, but also can control the Nikon original flashes when using in combination with X1R-N receiver.
Featuring multi-channel triggering and stable signal transmission, this flash trigger applies to hotshoe-mounted Nikon series cameras.
Features:
Built-in Godox 2.4G Wireless X System & Versatile Using Methods
-As a wireless Godox Flash Trigger/ wireless Shutter Release Trigger/ wireless Nikon Speedlights Trigger/ Flash Trigger with 2.5mm Sync Cord Jack
Support i-TTL Autoflash and Professional Functions
-16 groups and 32 channels to wirelessly control and trigger Add 01 to 99 wireless ID settings, which can only achieve triggering when the channels and wireless IDs of the master and slave unit are set to the same, avoiding signal interference effectively.
-Fully support TTL autoflash, 1/8000s high-speed sync, multi flash, manual flash, flash exposure compensation. TCM transform function, magnification function, one-shoot & multi- shoot setting, group modeling lamp control, group zooming, adjusting all groups1 output value simultaneously, etc.
Outstanding Design, Easy Operation and Great Portability
-Extra-large LCD panel, 5 group buttons and 4 function buttons offer convenient manipulation.
-XProN is quite portable for it only weighs 80g.
-Support Type-C USB firmware upgrade and wireless triggering by 2.5mm sync cord jack.
This flash trigger can be used on the following Nikon series camera models:
D5 D4 D60 D70S D90 D100 D200
0300S D300 D500 D610 D7C0 D750 D800
D810 D3100 D3200 D3300 D5000 D5100 D5200
D5300 D7000 D7100
This flash trigger can be used to control the following flashes models:
Transmitter
Receiver
Flash
Note
XPro-N
AD600 series/ AD360ll series/AD200
V860II series/ V850ll /TT685 series
TT600/TT350N/Quickerll series
QTII/SK II series /DP II series/GSII
As there are so many camera flashes in the market which are compatible with Nikon speedlite we do not test one by one.
The flashes with Godox wireless USB port
The flashes with Godox wireless USB port can only be triggered.
X1R-C
600EX-RT/580EXII
580EX/430EXII
V860N
XTR-16
AD360/AR400
Quicker series
SK series/DP series
GT/GS series Smart flash series
XTR-16S
V860N/ V850
Godox AD-S2 Orginal Stardard Reflector
Godox 18" Grid Octagonal Multi-functional Folding Softbox AD-S7
Godox Color Filter Honeycomb Grid Cover Kit AD-S11
Features:
- Four colors in a pack to color light for the background.
- Easily and fast attached to standard reflector by using a black retaining ring.
- Limits light spread and provides sharper shadows.
- Compatible with Godox WITSTRO Powerful Flash AD-180 AD-360 AD-360II AD200
Specifications:
- Color Filters Size: Ø120mm
- Color Filters Weight: 120g
- Grid Size: Ø116mm
- Grid Weight: 20g
Godox Wide Angle Soft Focus Shade Dome Diffuser AD-S17
This wide angle soft focus shade diffuser can soften the direct light from
flashlight to soft diffused light. Eliminating the flare of portrait and other
objects obtains a picture of softer and more natural. 180° effective area,
hemispherical compensation, soft and uniform light, embody brightness
and textures, especially suitable for lighting in small space and reflective objects.
Features:
- Effective Area: 180°
- Color: White
- Dimension: φ12cm
- Weight: 115g
- 100% Brand New
Godox AD-S15 Flash Lamp Tube Bulb Protector Cover
Godox AD-S15 Flash Lamp Tube Bulb Protector Cover for WITSTRO AD-180 AD-360
The cover is especially used for WITSTRO Advanced Flash AD180/AD360.
Easy to install on the flash light and protect it from direct and accidental collision.
Convenient for light carrying and transportation.
High quality and easy use.
Specification:
Diameter 3.8cm / 1.6in
Height: 8.4cm / 3.3in
Material: Aluminum alloy
Weight: 32g / 1.11oz
Note:Light shooting and differnent displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is 1-3 cm.

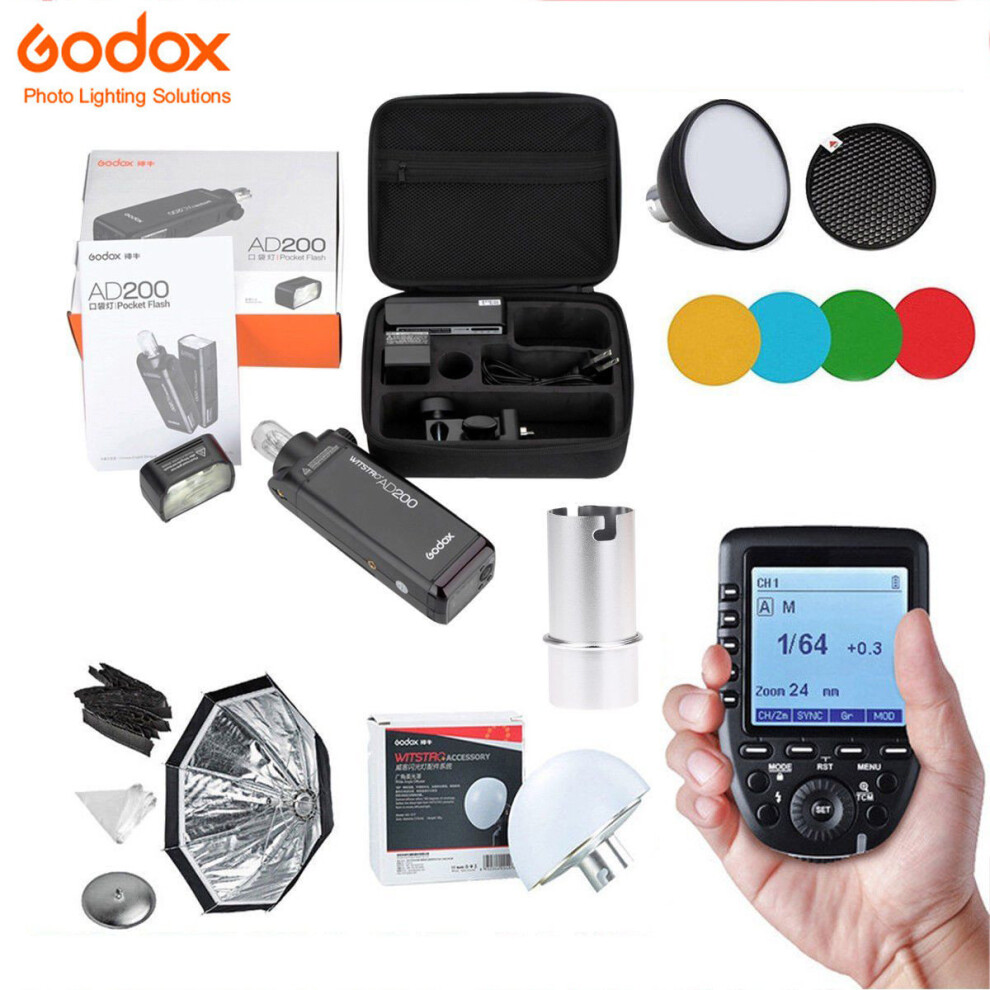

Package Including:
1X AD200 Flash Body
1X Trigger Xpro-n
1X Bare bulb flash head
1X Speedlite flash head
1x Bare bulb
1x li-ion Battery
1x battery power cable
1x Carrying case
1X flash holder
1X AD-S2
1X Color Filter Honeycomb Grid Cover Kit AD-S11
1X 18" Grid Octagonal Multi-functional Folding Softbox AD-S7
1X Wide Angle Soft Focus Shade Dome Diffuser AD-S17
1X Godox AD-S15 Flash Lamp Tube Bulb Protector Cover
Details
| OPC | P5N6CKC |
|---|---|
| Brand | Godox |
| Codes | 0712383667380 (EAN) |
| 712383667380 (UPC) | |
| MPN | AD200 kit |
Detailed Product Information
| Colour | black |
|---|---|
| Material | plastic |
| Weight | 2450g |
| Height | 110mm |
| Length | 280mm |
| Width | 200mm |
